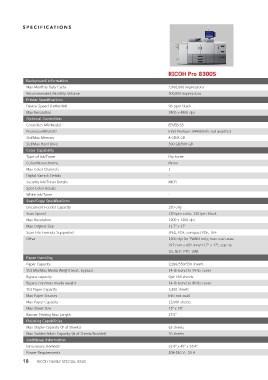

SPECIFICATIONS

RICOH Pro 8300S RICOH Pro C5200S RICOH Pro C7200X RICOH Pro C9200
Background Information
Max Monthly Duty Cycle 2,900,000 impressions 300,000 impressions 650,000 impressions 1,750,000 impressions
Recommended Monthly Volume 300,000 impressions 150,000 impressions 240,000 impressions 1,000,000 impressions
Printer Specifications
Device Speed (Letter/A4) 96 ppm black 65 ppm color/65 ppm black 85 ppm color/85 ppm black 115 ppm color/115 ppm black
Max Resolution 2400 x 4800 dpi 1200 x 4800 dpi 2400 x 4800 dpi 2400 x 4800 dpi
Optional Controllers
Controller Mfr/Model EFI/EB-35 EFI/Fiery E-24B (Fiery FS200) EFI/Fiery E-35A (Fiery FS300 Pro) EFI/Fiery E-85 (Fiery FS300 Pro)
Processor/Bits/GHz Intel Pentium G4400/Info not avail/3.3 Intel G1820/Info not avail/2.7 Intel i5-6500/Info not avail/3.6 Intel Xeon E-5-2637/Info not avail/3.7
Std/Max Memory 8 GB/8 GB 2 GB/2 GB 8 GB/8 GB 16 GB/16 GB
Std/Max Hard Drive 500 GB/500 GB 500 GB/500 GB 1 TB/1 TB 500 GB/4 TB
Color Capability
Type of Ink/Toner Dry toner Dry toner Dry toner Dry toner
Color/Monochrome Mono Color Color Color
Max Color Channels 1 4 5 4
Digital Varnish Details - - Clear -
Security Ink/Toner Details MICR - Invisible red toner -
Spot Color Details - - Neon pink, neon yellow -
White Ink/Toner - No Opt No
Scan/Copy Specifications
Document Feeder Capacity 220 orig 220 orig - -
Scan Speed 120 ipm color, 120 ipm black 120 ipm color, 120 ipm black - -
Max Resolution 1200 x 1200 dpi 600 x 600 dpi - -
Max Original Size 11.7" x 17" 11" x 17" - -
Scan File Formats Supported JPEG, PDF, compact PDF, TIFF JPEG, PDF, compact PDF, PDF/A, TIFF - -
Other 1200 dpi for TWAIN only; max scan area Scan to USB - -
297 mm x 432 mm/11.7" x 17"; scan to
SD, NCP, FTP, SMB
Paper Handling
Paper Capacity 2,200/550/550 sheets 550/550/1,250/1,250 sheets 2,000/500 sheets 2,200 / 2,200 sheets
Std Min/Max Media Weight (excl. bypass) 14-lb bond to 95-lb cover 52.3 to 300 gsm 52 to 300 gsm 52 to 470 gsm
Bypass capacity Opt 500 sheets 250 sheets Opt 500 sheets Opt 500 sheets
Bypass min/max media weight 14-lb bond to 80-lb cover 52.3 to 360 gsm 52 to 216 gsm 52 to 216 gsm
Std Paper Capacity 3,300 sheets 3,850 sheets 2,500 sheets 4,400 sheets
Max Paper Sources Info not avail 5 9 9
Max Paper Capacity 12,600 sheets 8,250 sheets 16,200 sheets 18,100 sheets
Max Sheet Size 13" x 18" 13” x 19.2” 13" x 19.2" 13” x 19.2”
Banner Printing Max Length 27.5" 27-1/2" 49.4" 49.4”
Finishing Capabilities
Max Staple Capacity (# of Sheets) 65 sheets 100 sheets 100 sheets 100 sheets
Max Saddle-Stitch Capacity (# of Sheets/Booklet) 20 sheets 50 sheets 56 sheets 50 sheets
Additional Information
Dimensions (HxWxD) 61.4" x 45" x 35.4" 48.4" x 31.4" x 34.6" 48.4" x 52" x 35.8" 59" x 99.2" x 39"
Power Requirements 208-240 V, 20 A 208-240 V, 12 A 208-240 V, 12 A 208-240 V, 30 A x 2
